FOUR DETAILS TO CONFIRM BEFORE SIGN-OFF

The finished cabinet needs to look like this.

Please show these four details clearly in the revised drawing. They are essential to the finished look, so I would like to confirm them before approving the design.

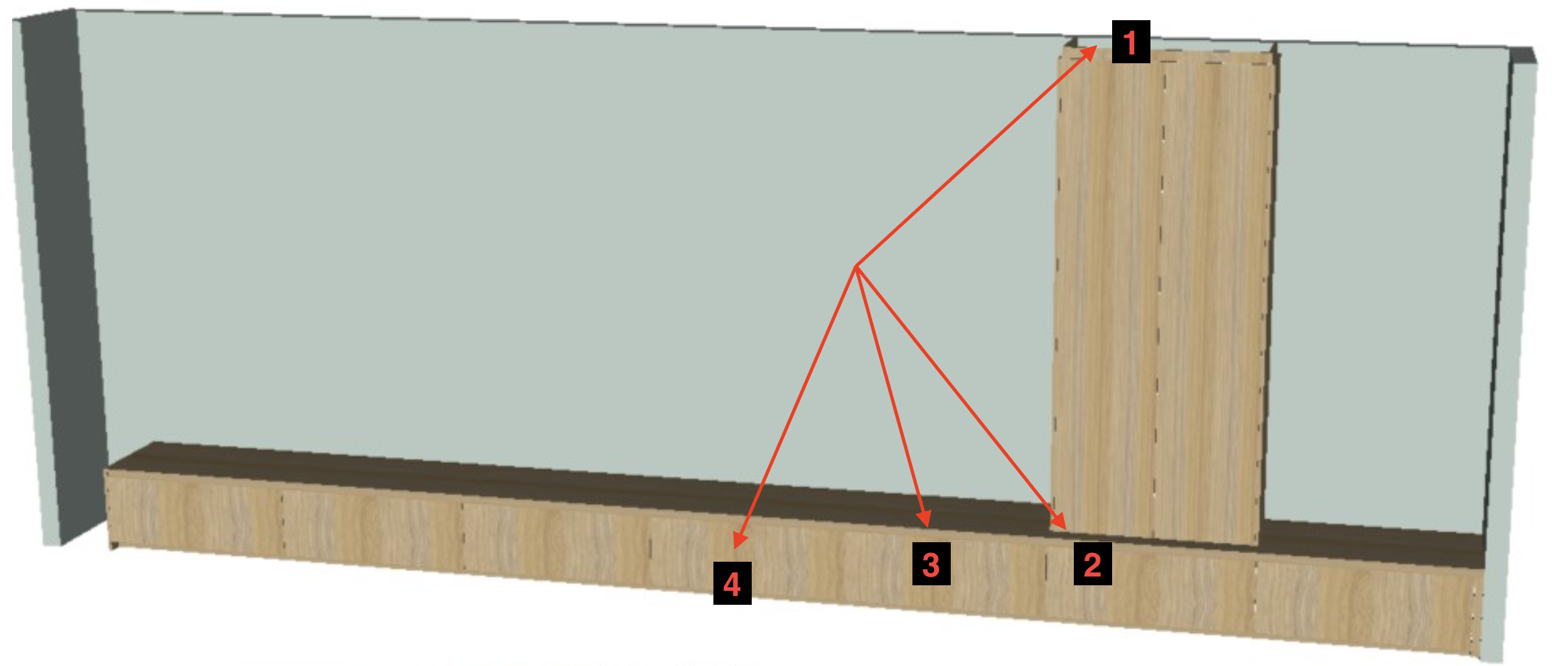

Cabinet proposal marked with 1 at the ceiling, 2 at the tall cabinet base, 3 at the line above the lower fronts, and 4 at the central pull-down panel. — Marked view of the current proposal.

Meet the ceiling

The tall cabinet must be finished tight to the ceiling, with no visible gap above it.

See point 1 in the marked view.

Keep the tall cabinet in line

The tall cabinet must sit directly on the same continuous top as the lower cabinet. Its front must line up as shown in the reference photo, with no setback.

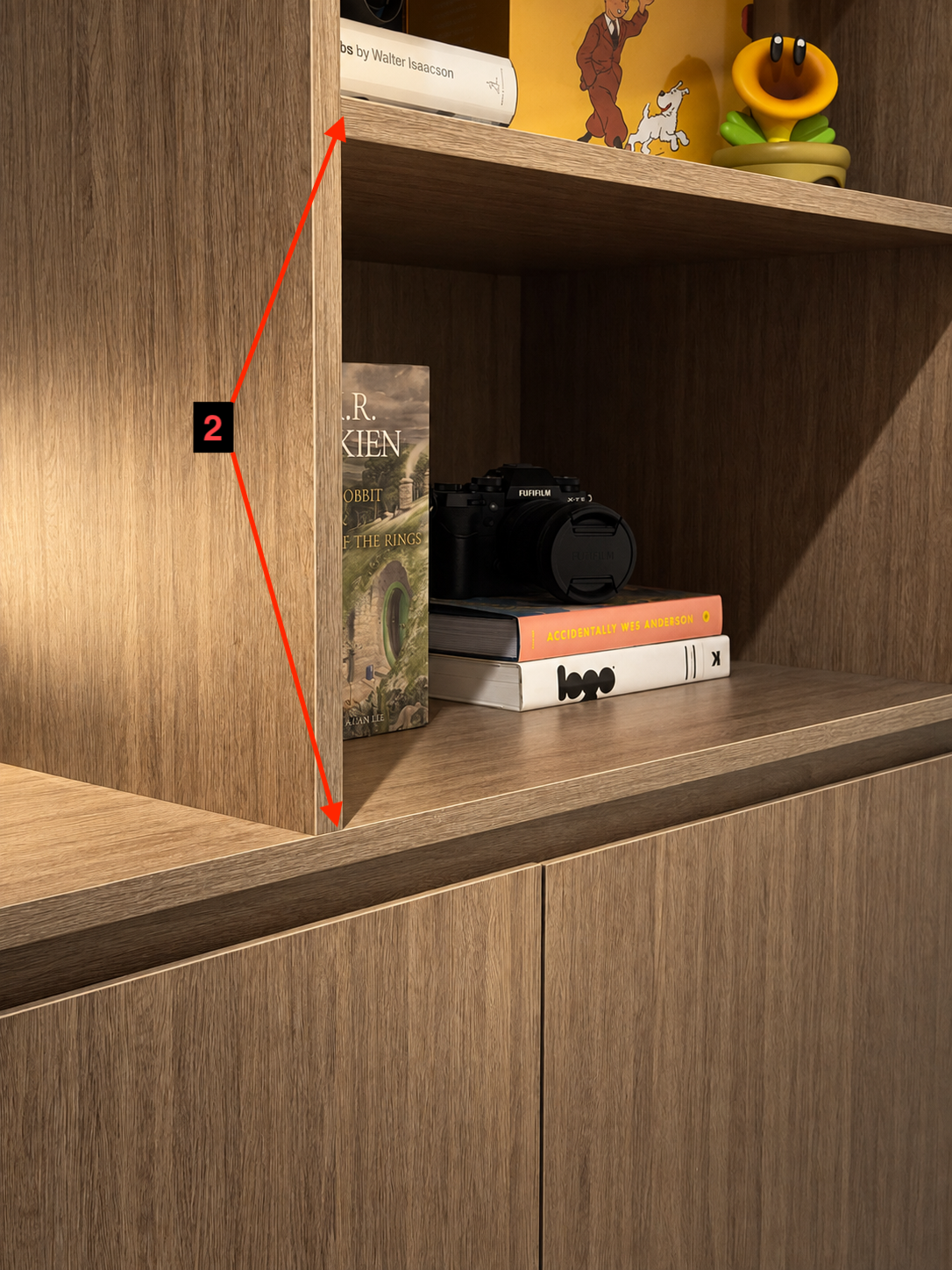

Reference photo showing the tall cabinet meeting the continuous top of the lower cabinet. — 2-1 · The junction to match

Keep the visible gap and recessed base

Leave a clear, continuous gap between the top and the lower doors, drawers and pull-down panel. That gap must remain visible in the finished cabinet. At floor level, set the base back as shown. Please match the look of my home-office cabinetry.

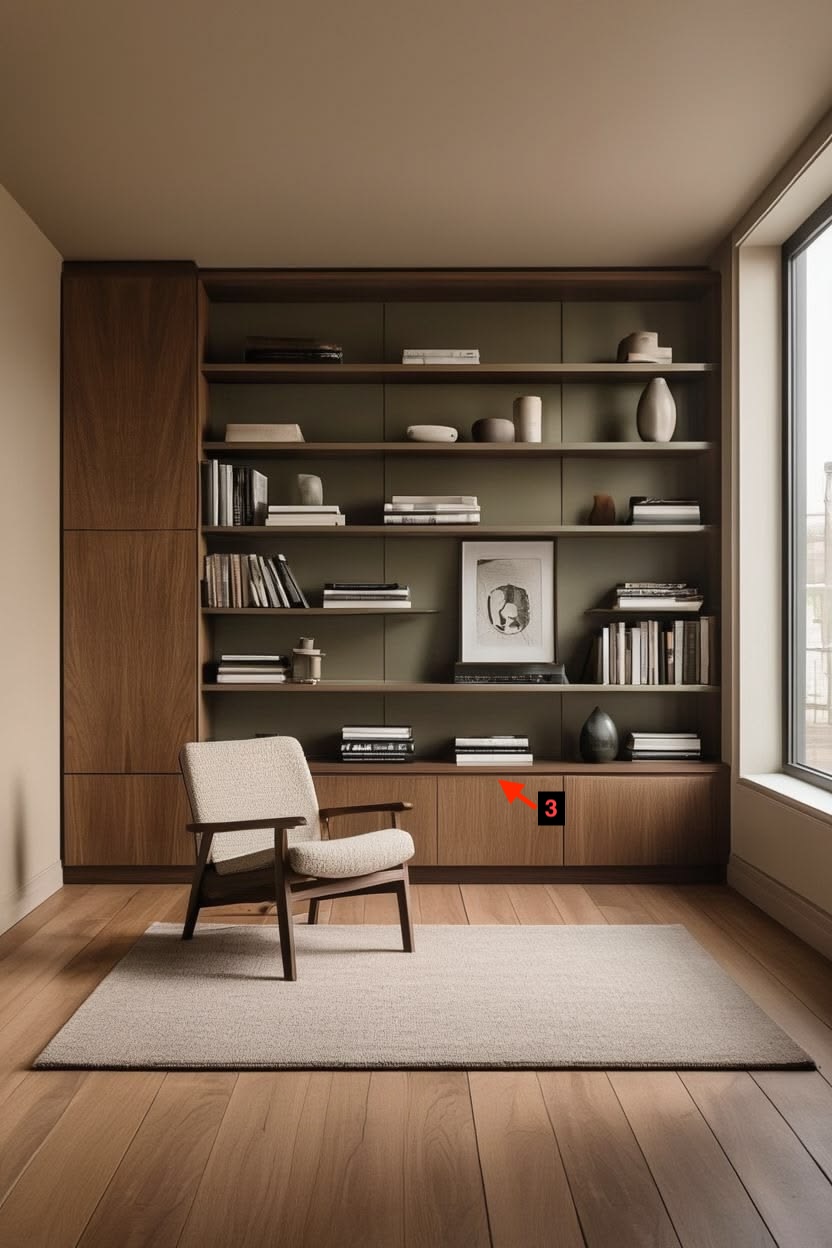

Overall cabinet reference with the gap above the lower fronts marked. — 3-1 · Overall look

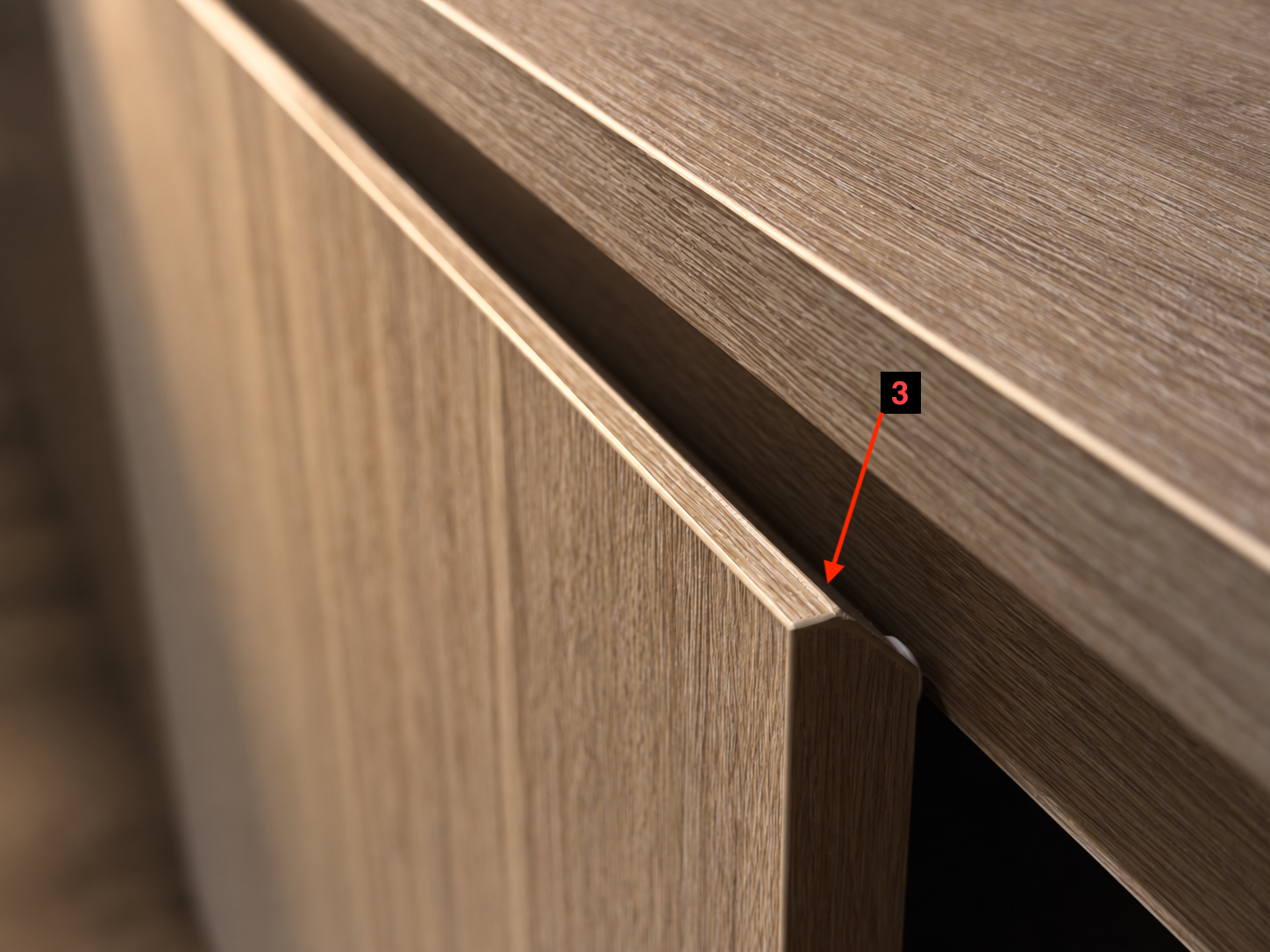

Close-up of the visible dark gap between the cabinet top and the door front. — 3-2 · Gap close-up

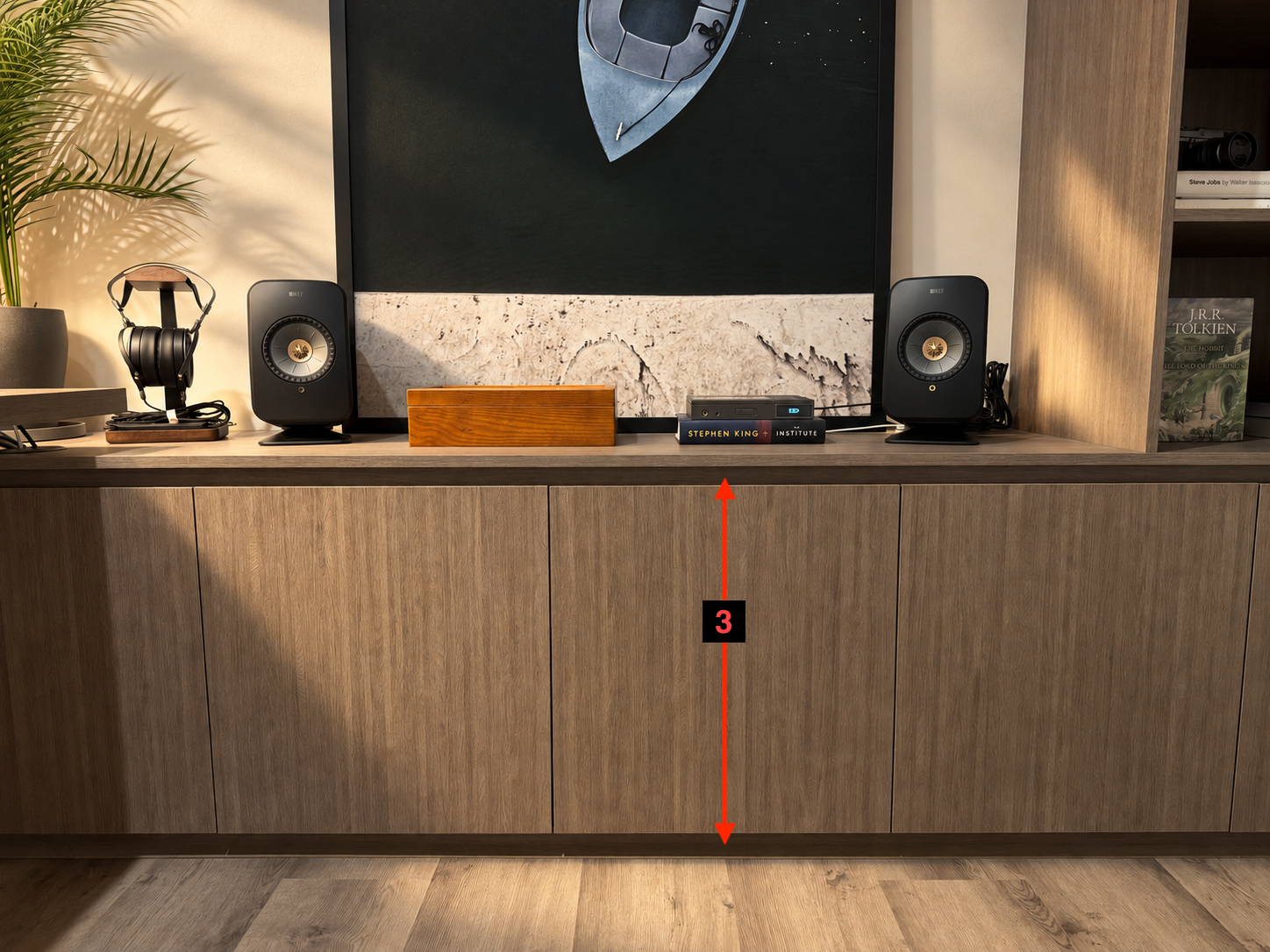

Existing home-office cabinetry showing a line above the lower fronts and a recessed base below. — 3-3 · My home-office cabinetry

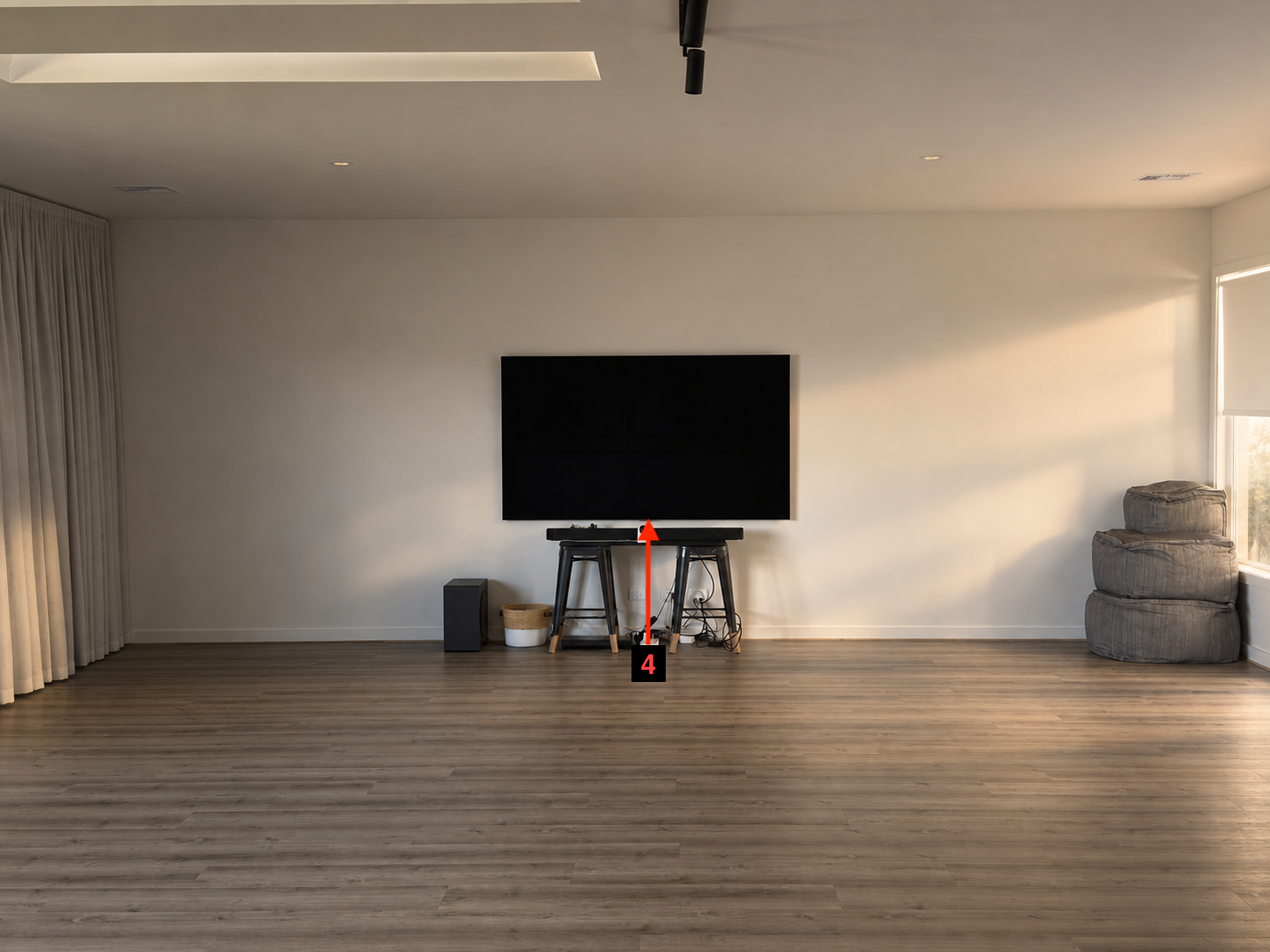

Centre the pull-down under the TV

The middle lower section is a pull-down panel. Its centre must line up visually with the centre of the TV. Please use the TV’s actual position when setting the widths, allowing for the curtain space at the left, and show this alignment in the revised drawing.
